Residential Garage Door Openers

Shop LiftMaster Residential Openers

Start with the opener style that fits the garage, then expand only the technical details that matter to the installation. Pricing, catalog options, and downloadable product documents remain connected to the same parts system.

Back to Opener Types View Full Parts Catalog

Live opener pricing is protected.Create a free account or sign in to view current customer pricing and order directly from the parts catalog.

Wall Mount

98032

Heavy lifting, quiet operation, and ceiling-saving wall-mount design.

Wall Mount

98022

Quiet wall-mount performance with smart control, battery backup, and automatic locking.

Center-Rail Trolley

2220L

Dependable chain-drive operation with built-in camera visibility and myQ connectivity.

LiftMaster • Wall Mount

98032

Heavy-Duty Wall Mount Garage Door Opener

Heavy lifting, quiet operation, and ceiling-saving wall-mount design.

LiftMaster's heavy-duty residential wall-mount opener is designed for oversized, exceptionally heavy, and specialty sectional doors. It mounts beside the torsion shaft instead of on the ceiling and combines a commercial-grade gearbox with smart access, battery backup, automatic locking, and remote LED lighting.

Purchase Options

Choose the option that matches the door height and application.

Model 98032

Up to 14 ft, application dependent • Wall mount - no trolley rail

GDD SKU: op-r-lm-98032

Quick Match

Heavy wood, overlay, insulated, and wind-load sectional doors

High-lift, vertical-lift, and follow-the-pitch residential applications

Garages with vehicle lifts, workshops, storage systems, or finished ceilings

Explore This Opener

Open only the information you need. Everything else stays out of the way while you shop.

Why Choose This Model?

Best applications and the features that separate this opener from the others.

11 points

Best For

Heavy wood, overlay, insulated, and wind-load sectional doors
High-lift, vertical-lift, and follow-the-pitch residential applications
Garages with vehicle lifts, workshops, storage systems, or finished ceilings
Luxury and semi-custom homes requiring quiet, space-saving operation

Key Features

UL 325-certified residential opener rated to lift doors up to 1,100 lb, subject to door dimensions and proper balance
Built-in Wi-Fi and Bluetooth with myQ app control, alerts, schedules, and remote monitoring
Integrated battery backup using two included 485LM batteries
Included 841LM Automatic Garage Door Lock deadbolts the door after closing
Included 837LM myQ Remote LED Light provides up to 1,000 lumens
Security+ 2.0, Timer-to-Close, motion detection, and Protector System safety reversal
No cable tension monitor is required by this opener design

Compatibility & Installation Fit

Door types, limits, clearance requirements, and application restrictions.

5 checks

Residential sectional doors using a compatible torsion shaft and properly balanced spring system
Maximum published door size: 14 ft high by 18 ft wide
Maximum published door weight: 1,100 lb, depending on dimensions and application
Requires approximately 3 in of headroom measured from the center of the torsion bar
Specialty track and heavy-door applications should be verified by a trained door systems technician before purchase

What Comes in the Box

The opener head, controls, lights, locks, batteries, and included equipment.

6 items

98032 opener head

837LM myQ Remote LED Light

Two 485LM battery-backup batteries

841LM Automatic Garage Door Lock

893MAX three-button remote control

880LMW Smart Control Panel

Technical Specifications

Motor, drive system, power, speed, size, lighting, radio, and warranty details.

13 specs

Motor: Heavy-duty 24V DC motor; automatic thermal protection; permanent lubrication
Drive / gearing: Internal chain-and-sprocket drive with 65:1 reduction and bronze-alloy gears
Lift capacity: Up to 1,100 lb, subject to door size, balance, and application
Maximum door: 14 ft high x 18 ft wide
Power: 120V AC, 60 Hz, 1.5A; UL listed; 6 ft three-prong cord
Travel speed: Approx. 7.5 ips with 4 in drum; 8.5 ips with 6 in drum; 10.5 ips with 8 in drum
Lighting: Included 837LM remote LED light, up to 1,000 lumens
Dimensions: Approx. 24 in L x 7.25 in W x 8.5 in H
Required clearance: Approx. 3 in from center of torsion bar
Smart radio: myQ 902-928 MHz, 50-channel frequency-hopping system
HomeLink: Compatible with HomeLink version 4.0 or higher; an adapter may be required
Warranty: Lifetime motor; 5-year parts; 1-year battery and accessories
Shipping carton: Approx. 28 x 15 x 10 in; 49 lb

Manuals & Product Documents

Download the locally stored LiftMaster guides, manuals, bulletins, and sell sheets.

3 files

Product Guide: 98032 Product Guide Product Bulletin: 98032 Product Bulletin Sell Sheet: 98032 Sell Sheet

A dedicated 98032 owner's manual was not included in the supplied files; the product guide, bulletin, and sell sheet are available for download.

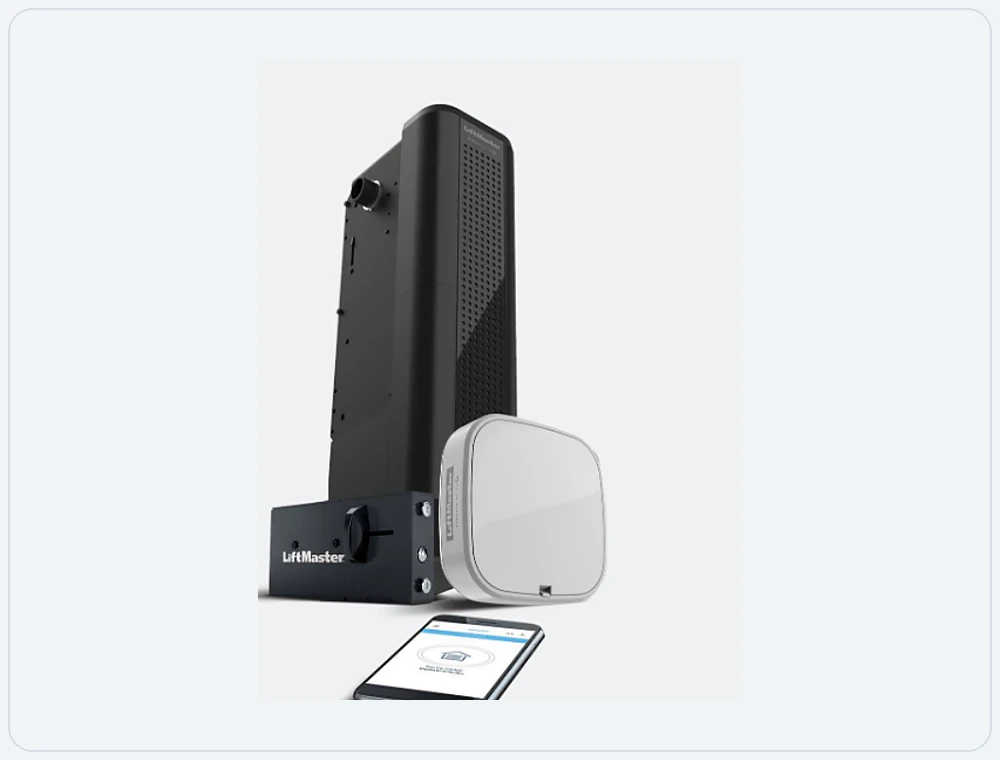

LiftMaster • Wall Mount

98022

DC Battery Backup Wall Mount Wi-Fi Garage Door Opener

Quiet wall-mount performance with smart control, battery backup, and automatic locking.

The LiftMaster 98022 moves the opener off the ceiling and mounts beside the torsion shaft. Its DC motor, integrated battery backup, automatic garage door lock, remote LED light, and myQ connectivity make it a strong residential choice where ceiling space and quiet operation matter.

Purchase Options

Choose the option that matches the door height and application.

Model 98022

Up to 14 ft, application dependent • Wall mount - no trolley rail

GDD SKU: op-r-lm-98022

Quick Match

Standard residential sectional doors with compatible torsion spring assemblies

Garages where ceiling storage, lighting, vehicle lifts, or finished ceilings are a priority

Homeowners who want app control, battery backup, and an automatic deadbolt lock

Explore This Opener

Open only the information you need. Everything else stays out of the way while you shop.

Why Choose This Model?

Best applications and the features that separate this opener from the others.

11 points

Best For

Standard residential sectional doors with compatible torsion spring assemblies
Garages where ceiling storage, lighting, vehicle lifts, or finished ceilings are a priority
Homeowners who want app control, battery backup, and an automatic deadbolt lock
Residential doors up to the published size and weight limits

Key Features

12V DC wall-mount drive rated for doors up to 850 lb, subject to dimensions and proper balance
Built-in Wi-Fi and Bluetooth with myQ app access and real-time alerts
Integrated 485LM battery backup for access during power outages
Included 841LM Automatic Garage Door Lock
Included 827LM myQ Remote LED Light provides up to 1,500 lumens
Security+ 2.0, Timer-to-Close, motion detection, and Protector System safety reversal
No cable tension monitor is required by this opener design

Compatibility & Installation Fit

Door types, limits, clearance requirements, and application restrictions.

7 checks

For residential sectional doors with compatible torsion assemblies
Not intended for one-piece doors
Not intended for low-headroom track using outside pickup drums
Not intended for doors lifted by extension springs
Maximum published door size: 14 ft high by 18 ft wide
Maximum published door weight: 850 lb
Requires approximately 3 in of headroom measured from the center of the torsion bar

What Comes in the Box

The opener head, controls, lights, locks, batteries, and included equipment.

6 items

98022 opener head

827LM myQ Remote LED Light

485LM battery-backup battery

841LM Automatic Garage Door Lock

893MAX three-button remote control

880LMW Smart Control Panel

Technical Specifications

Motor, drive system, power, speed, size, lighting, radio, and warranty details.

13 specs

Motor: Medium-duty 12V DC motor; automatic thermal protection; permanent lubrication
Drive / gearing: Internal chain-and-sprocket drive with 63:1 reduction
Lift capacity: Up to 850 lb, subject to door size, balance, and application
Maximum door: 14 ft high x 18 ft wide
Power: 120V AC, 60 Hz, 1.5A; UL listed; 6 ft three-prong cord
Travel speed: Approx. 8.5 ips upward and 7.6 ips downward
Lighting: Included 827LM remote LED light, up to 1,500 lumens
Dimensions: Approx. 22 in L x 7.25 in W x 7.5 in H
Required clearance: Approx. 3 in from center of torsion bar
Smart radio: myQ 902-928 MHz, 50-channel frequency-hopping system
HomeLink: Compatible with HomeLink version 4.0 or higher
Warranty: Lifetime motor; 5-year parts; 1-year battery and accessories
Shipping carton: Approx. 24 x 11.9 x 10 in; 38 lb

Manuals & Product Documents

Download the locally stored LiftMaster guides, manuals, bulletins, and sell sheets.

3 files

Product Guide: 98022 Product Guide User Guide: 98022 User's Guide Owner's Manual: 98022 Owner's Manual

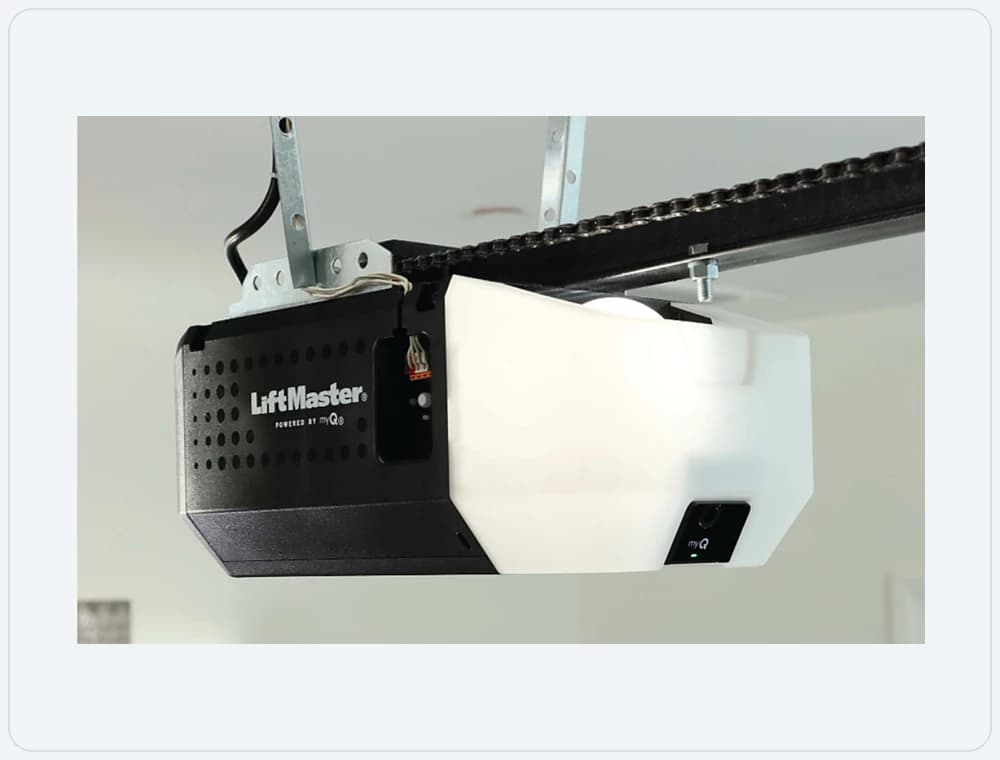

LiftMaster • Center-Rail Trolley

2220L

3/4 HPS DC Chain Drive Opener with Integrated Camera and Wi-Fi

Dependable chain-drive operation with built-in camera visibility and myQ connectivity.

The LiftMaster 2220L combines a reinforced chain-drive trolley system, DC motor, integrated camera, built-in Wi-Fi and Bluetooth, standard garage lighting, and Security+ 3.0 access control. Separate 7 ft, 8 ft, and 10 ft rail packages allow the opener to match common residential door heights.

Purchase Options

Choose the option that matches the door height and application.

2220L with 7 ft Rail

7 ft door package • G1707 one-piece 7 ft rail

GDD SKU: op-r-lm-2220l-7

2220L with 8 ft Rail

8 ft door package • G1708 one-piece 8 ft rail

GDD SKU: op-r-lm-2220l-8

2220L with 10 ft Rail

10 ft door package • G1710 one-piece 10 ft rail

GDD SKU: op-r-lm-2220l-10

Quick Match

Standard residential sectional doors using a center-mounted trolley opener

Homeowners who want built-in camera viewing and app-based monitoring

Frequent-use residential garages needing a durable chain-drive system

Explore This Opener

Open only the information you need. Everything else stays out of the way while you shop.

Why Choose This Model?

Best applications and the features that separate this opener from the others.

11 points

Best For

Standard residential sectional doors using a center-mounted trolley opener
Homeowners who want built-in camera viewing and app-based monitoring
Frequent-use residential garages needing a durable chain-drive system
7 ft, 8 ft, and 10 ft door-height applications using the matching rail package

Key Features

3/4 HPS DC motor with reinforced chain drive and 63:1 gear reduction
Integrated wide-angle camera for Live Garage View through the myQ app
Built-in Wi-Fi and Bluetooth for app control, alerts, access sharing, and software updates
Security+ 3.0 radio system with encrypted access and long-range L993S remote
Built-in standard lighting accepts up to a 60W-equivalent LED bulb; bulb not included
Electronic travel limits, auto-force adjustment, and Protector System safety sensors
Three separately priced rail packages for 7 ft, 8 ft, and 10 ft doors

Compatibility & Installation Fit

Door types, limits, clearance requirements, and application restrictions.

6 checks

For residential sectional garage doors
Unattended close features are intended only for sectional doors
The Protector System safety sensors must be installed and correctly aligned for the door to close
A complete open-and-close cycle is required before Wi-Fi learn mode can be activated after installation or a power outage
myQ app control and the camera require household power and do not operate while the opener is running only on battery power
Choose the rail package that matches the door height; verify header, backroom, and structural mounting requirements before ordering

What Comes in the Box

The opener head, controls, lights, locks, batteries, and included equipment.

5 items

2220L opener head with integrated camera

L955W multi-function control panel

L993S three-button remote control

Protector System sending and receiving safety sensors

Installation hardware supplied with the selected rail package

Technical Specifications

Motor, drive system, power, speed, size, lighting, radio, and warranty details.

16 specs

Motor: 12V DC, 53 RPM, 3/4 HPS; automatic thermal protection; permanent lubrication
Drive / gearing: Steel chassis, T-rail and trolley, reinforced chain drive, 63:1 reduction
Power: 120V AC, 60 Hz, 2.7A; UL listed; 4 ft three-prong cord
Travel speed: Approx. 9 ips upward and 6.5 ips downward
Lighting: Built-in socket for up to a 60W-equivalent LED bulb; bulb not included
Opener dimensions: Approx. 14.6 in L x 8.2 in W x 7.2 in H
Required headroom: Approx. 2 in above the highest point of travel, subject to installation
Security radio: Security+ 3.0; published remote range up to 1,300 ft; operating range -40 F to 150 F
Smart radio: myQ 902-928 MHz, 50-channel frequency-hopping system
HomeLink: Compatible with HomeLink version 4.0 or higher
Warranty: 5-year motor; 1-year chain, camera, parts, and accessories
Opener carton: Approx. 10 x 20.8 x 9.1 in; 14 lb
7 ft rail: G1707; installed length approx. 124 in; max opening approx. 7 ft 6 in
8 ft rail: G1708; installed length approx. 136 in; max opening approx. 8 ft 6 in
10 ft rail: G1710; installed length approx. 160 in; max opening approx. 10 ft 6 in
Chain assemblies: 7 ft: 041D3484; 8 ft: 041D3483; 10 ft: 041D3485

Manuals & Product Documents

Download the locally stored LiftMaster guides, manuals, bulletins, and sell sheets.

3 files

Product Guide: 2220L Product Guide User Guide: 2220L User's Guide Owner's Manual: 2220L / 2420L Owner's Manual
